* 주요스펙
1. Bandwidh FREQ : DC ~ 10MHz
2 Modular Design : 1 ~ 7 Power Measurement Channels
3. High Accuracy : 0.015%
4. Internal Voltage range : 3mVrms ~ 1000Vrms (3200Vpk)
5. Internal Current range : 500uArms ~ 32Arms (120Apk)
6. DualPath Harmonics and Interharmonic Real Max : 2000th
7. Sampling Rate : 1.2Ms/s
* 주요성능
1. Harmonics Watt, Voltage, Current graph One Screen Display
2. Customer Setting Filter Support
3. Seven different AC / DC signals can be measured.
4. A/B/C Channel : Channel A : Highly accurate up to 10MHz
Channel B : 0.11% accurate up to 500KHz
Channel C : 0.04% accurate up to 10KHz
5. 1024*600 10.1인치Touchsceen stanard
6. Giga Bit LAN Interface
7. DVI / VGA Interface Support
8. USB2.0 Data-log 및 CSV File 지원
9. internal HDD 60GB
10. Master / SLAVE Mulitle Unit MAX : 14CH
* 응용적용 분야

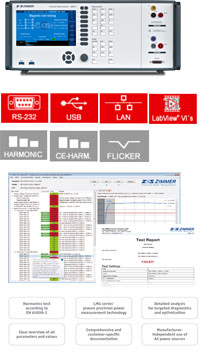

1. IEC 61000-3-2 / -3 / -11 / -12 Full compliance TEST
2. IEC62301 Test
3. Inverter Motor Efficiency Test
4. Home Appliance Power TEST
5. Electric car Power Test
6. LED, Ballast Test
7. Battery Power Test
8. CAN trigger Bus
9. Torque and Speed Test with inverter Efficiency Test
10. Short - Time Inrush Test
11. EV Motor Low impedance Test

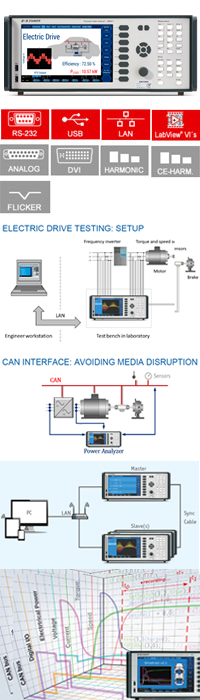

ZES ZIMMER 2019 New High Precision Power Analyzer LMG641
* 주요성능
1. Bandwidh FREQ : DC ~ 10MHz
2 Modular Design : 1 ~ 4 Power Measurement Channels
3. High Accuracy : 0.015%
4. Internal Voltage range : 3mVrms ~ 1000Vrms (3200Vpk)
5. Internal Current range : 500uArms ~ 32Arms (120Apk)
6. DualPath Harmonics and Interharmonic Real Max : 2000th
7. Sampling Rate : 1.2Ms/s
8. Internal Memory : 16M (record transienrs per track)
* 주요성능
1. Harmonics Watt, Voltage, Current graph One Screen Display
2. Customer Setting Filter Support
3. Seven different AC / DC signals can be measured.
4. A/B/C Channel : Channel A : Highly accurate up to 10MHz
Channel B : 0.11% accurate up to 500KHz
Channel C : 0.04% accurate up to 10KHz
5. 1024*600 Touchsceen stanard
6 Giga Bit LAN Interface
7. DVI / VGA Interface Support
8. USB3.0 Data-log 및 CSV File 지원
9. high Speed EVT Recoder TEST
10. Harmonics FundMental 표시 (F1)
* 응용적용 분야
1. IEC 61000-3-2 / -3 / -11 / -12 Full compliance TEST
2. IEC62301 Test
3. Inverter Motor Efficiency Test
4. Transformer TEST
5. Home Appliance Power TEST
6. Electric car Power Test - EV TEST
7. LED, Ballast Test
8. Battery Power Test
9. high Speed EVT Recorder TEST
10. 고정밀 광대역 - Auto Connect 기능
current Transformer (AC / DC : 0.01% / 1MHz)

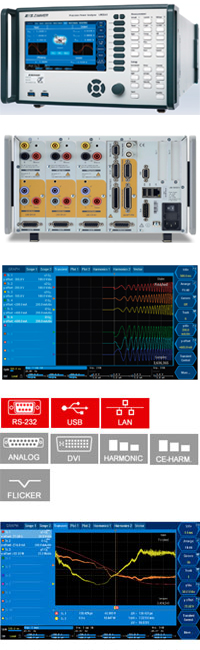

ZES ZIMMER High Precision Power Analyzer LMG611
* 주요성능
1. Bandwidh FREQ : DC ~ 10MHz
2. Modular Design : Only 1CH Power Measurement Channels
3. High Accuracy : 0.015%
4. Internal Voltage range : 3mVrms ~ 1000Vrms (3200Vpk)
5. Internal Current range : 500uArms ~ 32Arms (120Apk)
6. DualPath Harmonics and Interharmonic Real Max : 2000th
7. Sampling Rate : 1.2Ms/s
* 주요성능
1. Harmonics Watt, Voltage, Current graph One Screen Display
2. Customer Setting Filter Support
3. Seven different AC / DC signals can be measured.
4. A/B/C Channel : Channel A : Highly accurate up to 10MHz
Channel B : 0.11% accurate up to 500KHz
Channel C : 0.04% accurate up to 10KHz
5. 1024*600 Touchsceen stanard
6 Giga Bit LAN Interface
7. DVI / VGA Interface Support
8. USB2.0 Data-log 및 CSV File 지원
* 응용적용 분야
1. IEC 61000-3-2 / -3 / -11 / -12 Full compliance TEST
2. IEC62301 Test
4. Home Appliance Power TEST
5. LED, Ballast Test
6. Battery Power Test
7. high Speed EVT Recoder TEST
